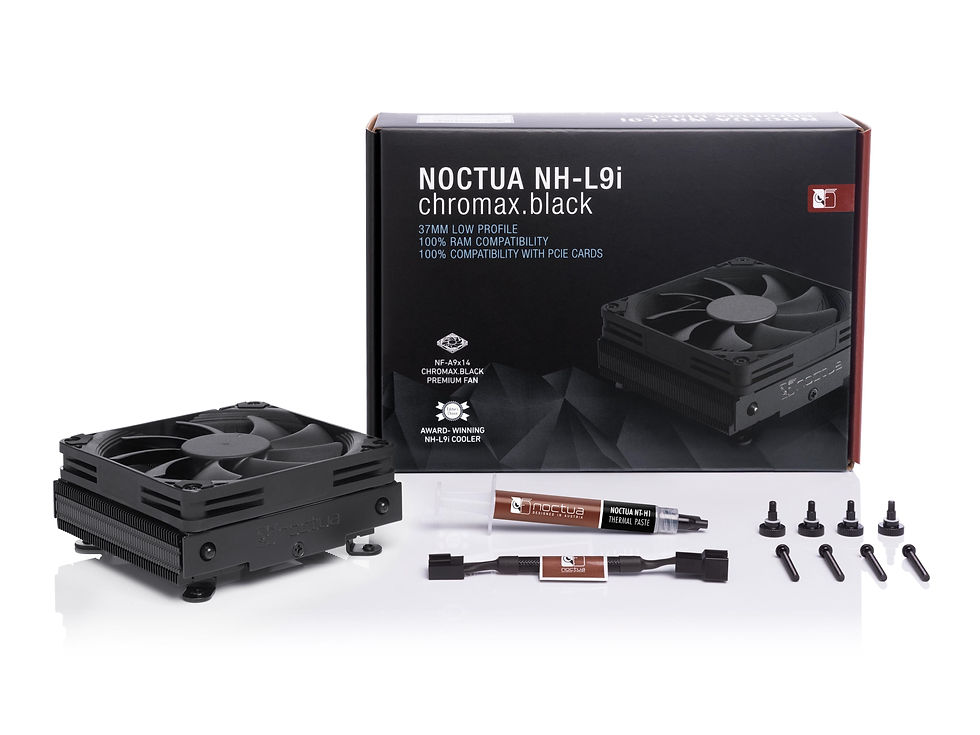

Noctua NH-L9I (Chromax Black)
  • Height (without fan): 23mm / (with fan): 37mm
  • Width (without fan): 95m / (with fan): 95mm
  • Depth (without fan): 95mm / (with fan): 95mm
  • Weight (without fan): 345g / (with fan): 420g
  • Material: Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
  • Fan compatibility: 92x92x14mm, 92x92x25mm
  • Warranty: 6 Years
  • Bearing: SSO2
  • Max. rotational speed (+/- 10%): 2500 RPM
  • Max. rotational speed with L.N.A. (+/- 10%): 1800 RPM
  • Min. rotational speed (PWM, +/-20%): 600 RPM
  • Max. airflow: 57,5 m³/h
  • Max. airflow with L.N.A.: 40,8 m³/h
  • Max. acoustical noise: 23,6 dB(A)
  • Max. acoustical noise with L.N.A.: 14,8 dB(A)
  • Input power: 2,52 W
  • Voltage range: 12 V
  • MTTF: > 150.000 h


  • Intel Socket LGA1150, LGA1151, LGA1155, LGA1156
  • AMD Socket AM4 with NM-AM4-L9aL9i

Noctua NH-L9I (Chromax Black)

  • Product Info

    The NH-L9i is an all-black version of Noctua’s award-winning NH-L9i low-profile quiet CPU cooler for HTPCs and Small Form Factor (SFF) builds. Thanks to the same proven heatsink design and NF-A9x14 PWM fan, it stays true to the NH-L9i’s successful formula of fusing a height of only 37mm with strong performance and excellent quietness of operation, as well as 100% RAM and PCIe compatibility. At the same time, the version with its black fan and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2™ low-profile mounting system for Intel LGA115x, Noctua’s enthusiast-grade NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-L9i is a premium choice for customers who seek an ultra-compact heatsink that looks just as great as it cools.

  • Warranty

    6-year warranty
