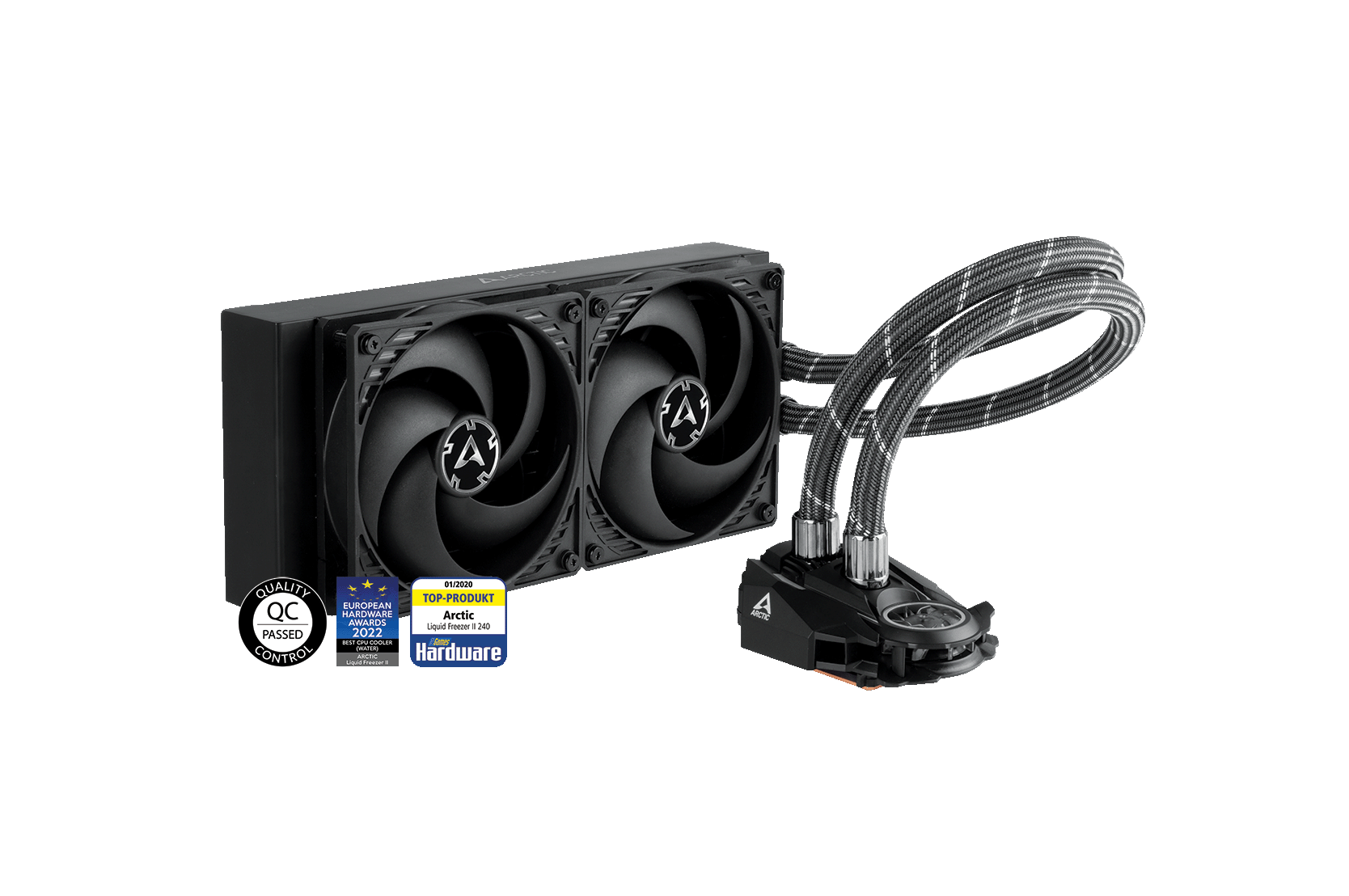

Arctic Liquid Freezer II 240 AIO Water Cooler
  • Intel Socket: 1700, 1200, 115X, 2011-3*, 2066* *Square ILM
  • AMD Socket: AM5, AM4
  • Ram Clearance: unlimited
  • Warranty: 6 Years
  • Operating Ambient Temperature: 0 - 40 °C
  • VRM Fan: 40 mm, 1000 – 3000 RPM (PWM controlled)

  • Pump: 800 – 2000 RPM (PWM controlled)

  • Power Consumption: 0,5 W – 2,7 W (Pump + VRM Fan)

  • Cold Plate: Copper, Micro-Skived-Fins

  • Thermal Paste: MX-4 (0,8 g)

  • Fan: 2x ARCTIC P12 – 120 mm Fan

  • Fan Speed: 200 – 1 800 RPM

  • Fan Bearing: Fluid Dynamic Bearing

  • Noise Level: 0,3 Sone

  • Current: 0,08 A / 12 V DC

  • Airflow: 55,6 CFM

  • Static Pressure: 2,2 mm H2O

  • Connector: 4-pin-Connector

  • Radiator: 277 x 120 x 38 mm

  • Pump (w/o tubes) 98 mm x 78 mm x 53 mm

  • Tube Diameter: Outer: 12,4 mm // Inner: 6,0 mm

  • Tube Length: 450 mm

  • Weight: 1191 g (Fan, Radiator, Pump, Tubes)

Arctic Liquid Freezer II 240 AIO Water Cooler

  • Product Info

    At the end of 2022, AMD has released the AM5 socket, the successor to its popular AM4 platform. Because all mechanical dimensions remain identical, we are able to guarantee the compatibility of ARCTIC coolers with AMD's new processors.

    Additionally, all coolers shipped by ARCTIC are already compatible with Intel's Alder Lake and Raptor Lake LGA1700 processors. Coolers purchased from resellers, however, may still have been shipped without the corresponding accessories. In this case, please contact our customer support.

    AMD has been using a new multi-die layout for its high-end AM4 processors for a few generations now. In these processors, the hotspot is not centered by the IHS (Integrated Heat Spreader). To still allow for optimal heat dissipation, we have developed a special mounting kit for the Liquid Freezer II that allows the cold plate to be placed directly over the hotspot of the CPU. AMD's upcoming 7000 series AM5 processors are also come with multi-die layouts and can therefore benefit from the Liquid Freezer II's unique offset mounting.

    The Liquid Freezer II series has been tested numerous times by independent reviewers and praised for its performance, price and quietness. It consistently exceeds all expectations and sets new standards in compact water cooling. As a further mark of recognition, the Liquid Freezer II series was awarded the “European Hardware Award 2022” for the best CPU water cooler.

  • Warranty

    6 Years Warranty
