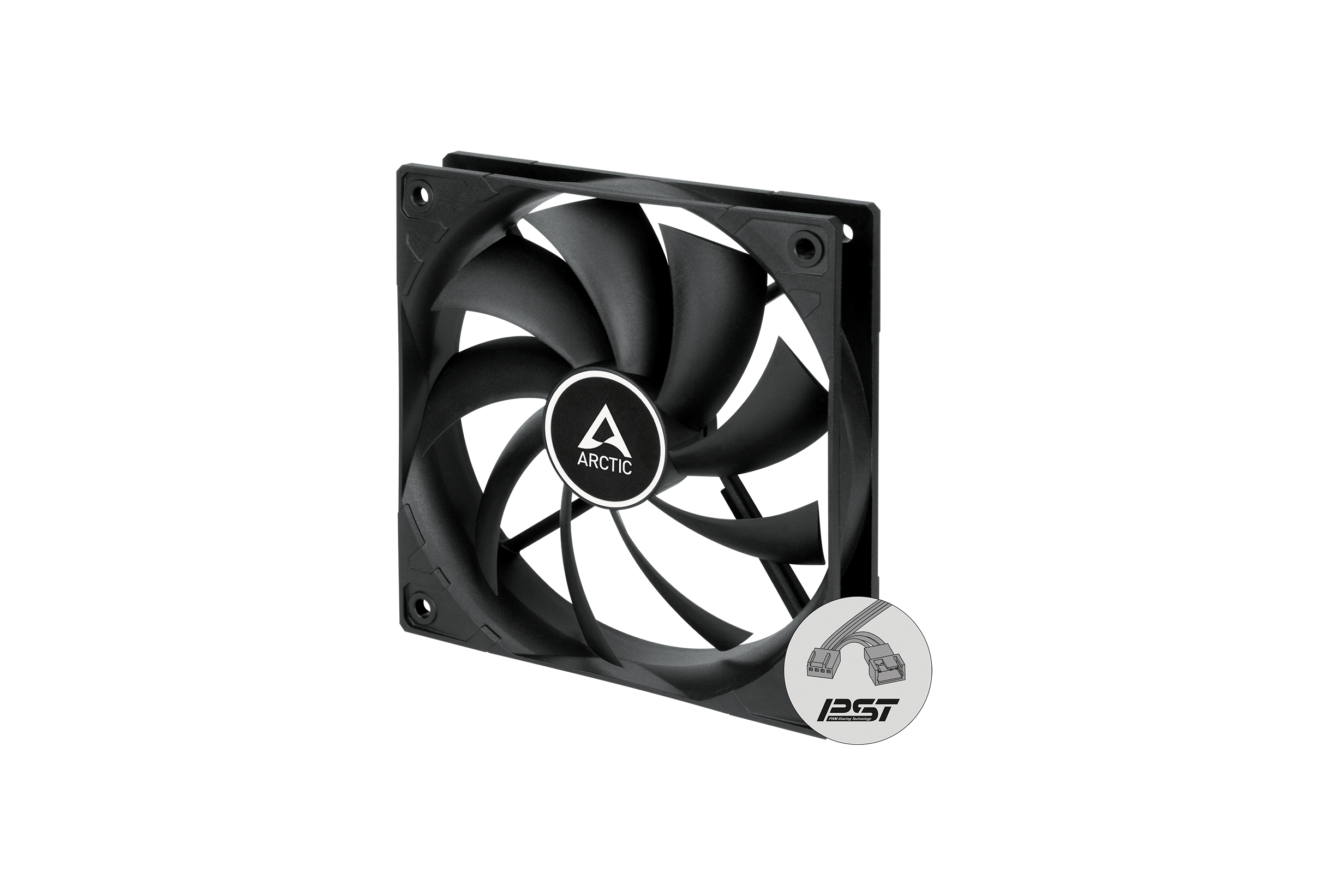

Arctic F12 PWM Fan (Black)
  • Fan Speed: 230 - 1350 rpm
  • Airflow: 53 CFM/ 90.1 m³/h
  • Static Pressure: 1 mm H₂O
  • Noise Level: 0.3 Sone
  • Fan Frame: Standard

  • Control Type: PWM

  • Connector: 4-Pin-Connector

  • Fan Bearing: Fluid Dynamic Bearing

  • Operating Ambient Temperature: 0 - 40 °C

  • Warranty: 6 Years

  • Typical Voltage: 12 V DC

  • Starting Voltage: 6 V

  • Current/ Voltage: 0.12 A / 12 V

  • Cable Length: 400 mm

  • Length: 120 mm

  • Width: 120 mm

  • Height: 25 mm

  • Weight: 105 g

Arctic F12 PWM Fan (Black)

  • Product Info

    The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life

    The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.

    The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.

  • Warranty

    6 Years Warranty
